SUSPENSION
ORIGINAL BILSTEIN, 2 PER CARArticle code: v.nr.1093200031
ALL MOUNTING HARDWARE FOR THE TOP MOUNT OF 1 FRONT SHOCK. KIT IS INCLUDED WITH EACH FRONT SHOCK ABSORBER.Article code: v.nr.1103200056
Steering Lever Locking Plate W105 W108 W109 W110 W111 W112 W113 W120 W121 W128 W180 W186 W187 W188 W189 W191 W198
1963 and later Models1 KIT WILL CONTAIN ALL NEEDED ITEMS FOR BOTH SIDES. WILL NEED TO REUSE OLD METAL STOP PLATES.Article code: v.nr.1083300275

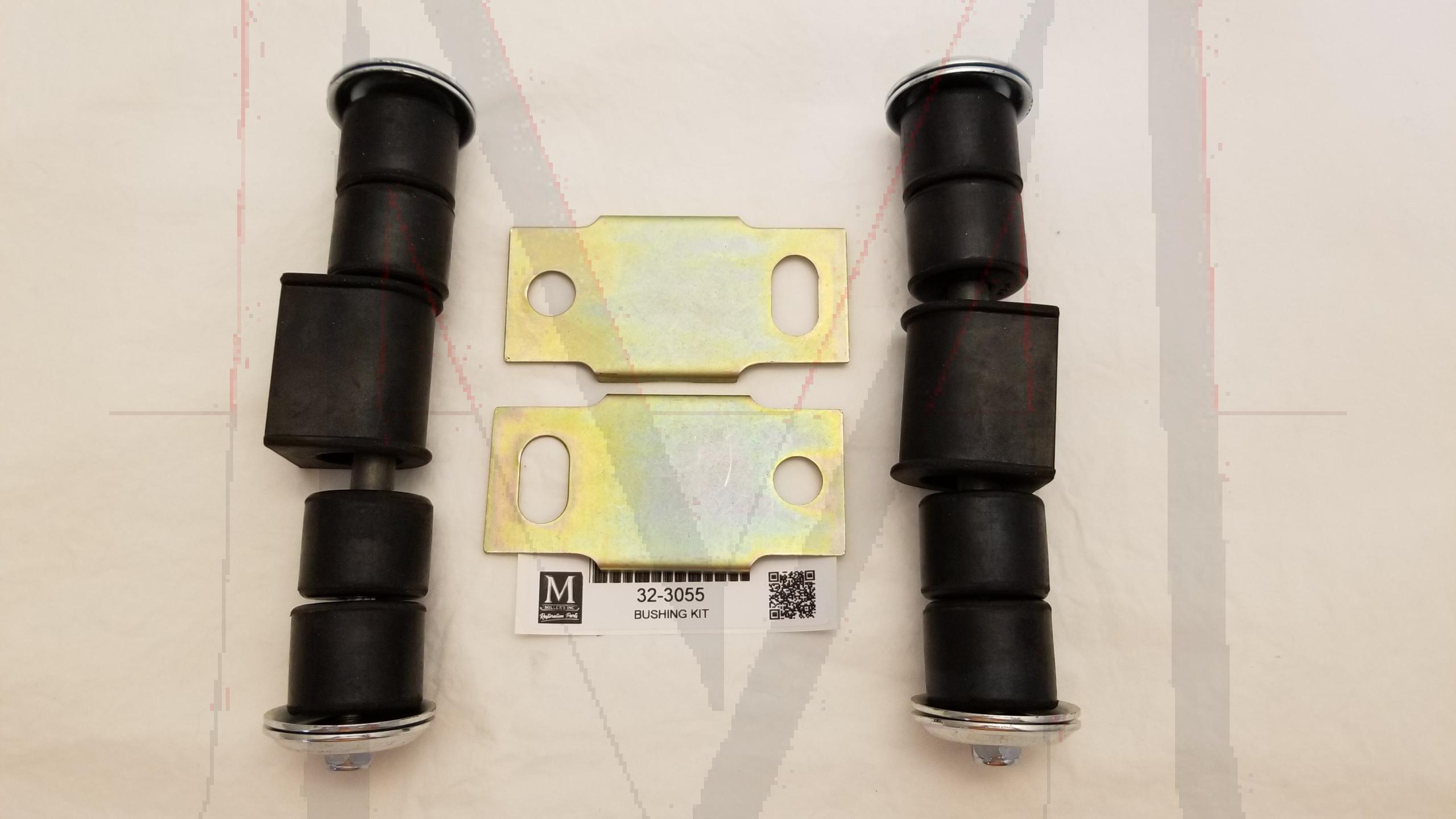

Stabilizer Bar Repair Kit 68 69 70 71all w111 w108 w109 coupe and sedan versions 250se 280se 3.5
Article code: v.nr.1073300103
URETHANE FRONT SWAY BAR END LINK BUSHING QTY NEEDED PER CAR MODEL SOLD EACH 190SL PONTON 8 8
URETHANE FRONT SWAY BAR END LINK BUSHING QTY NEEDED PER CAR MODEL SOLD EACH 8 Needed per Car
URETHANE FRONT SWAY BAR TO FRAME QTY NEEDED PER CAR MODEL W108 (250/280) W109 (300/6.3) W110 (190/200/230) W111 (220/250/280) W112 (300) W113 (230/250/280SL) Front sway bar to frame - 22mm 2 2 early 2 late Front sway bar to frame - 23.85mm 2 2 late Front sway bar to frame - 20.34mm 2 2 early 2 late NOTE: Before selecting a front sway bar frame bushing, please measure the bar diameter first. Use either a flexible tape or a pair of calipers as shown. Do not use a flat ruler. With Calipers With flexible tape If using an inch tape – take measurement and divide by 3.142 to get the diameter. To convert from inches to mm, simply multiply by 25.4. In both cases, this sway bar measures 24mm.
URETHANE FRONT LEAF SPRING BUSHING QTY NEEDED PER CAR MODEL W108 (250/280) W110 (190/200/230) W111 (220/250/280) W113 (230/250/280SL) 4 4 4 4
URETHANE FRONT LEAF SPRING BUSHING QTY NEEDED PER CAR MODEL W109 (300/6.3) W112 (300) 4 4
URETHANE FRONT SWAY BAR TO FRAME QTY NEEDED PER CAR MODEL W108 (250/280) W109 (300/6.3) W110 (190/200/230) W111 (220/250/280) W112 (300) W113 (230/250/280SL) Rear sway bar to frame #112 326 01 81 early 6 Rear sway bar to frame #112 326 02 81 late 112 and 109 6 6 NOTE: Before selecting a rear sway bar frame bushing, please measure the bar diameter first. Use either a flexible tape or a pair of calipers as shown. Do not use a flat ruler. With Calipers With flexible tape If using an inch tape – take measurement and divide by 3.142 to get the diameter. To convert from inches to mm, simply multiply by 25.4. In both cases, this sway bar measures 24mm.
URETHANE TRAILING ARM REAR (TO AXLE) QTY NEEDED PER CAR MODEL SOLD PER BUSHING SLEEVE NOT SOLD SEPERATELY W108 (250/280) W109 (300/6.3) W110 (190/200/230) W111 (220/250/280) W112 (300) W113 (230/250/280SL) 4 4
